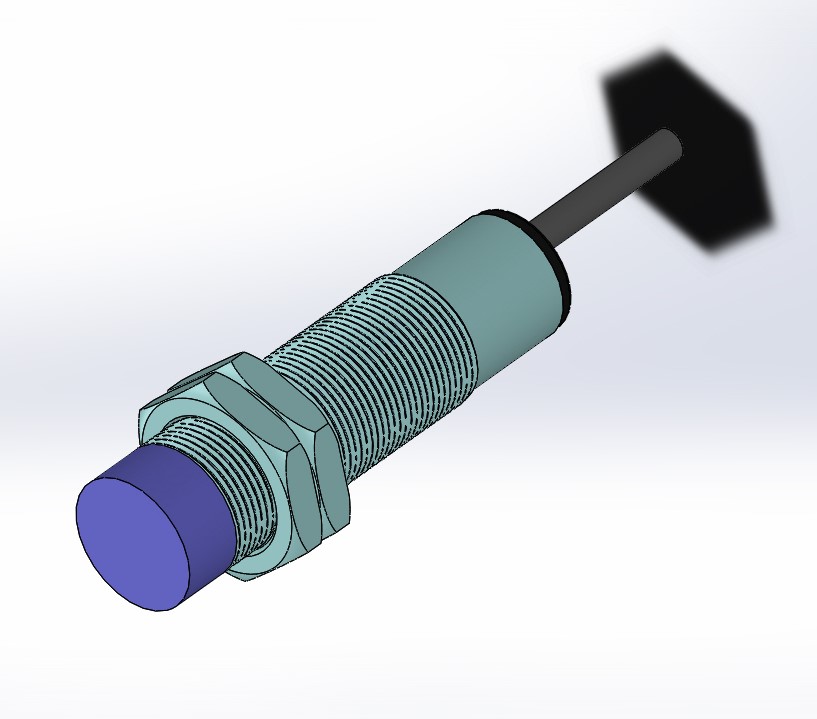

IPS-208-CD-18-V Download PDF
Category: 2wire DC pre cabled inductive sensor
| Product Code | IPS-208-CD-18-V |
|---|---|
| housing | M18X1Ni PLATED Brass |
| number of wires | 2 |
| switching distance | 8 mm |
| temperature range | -20~+60 °C |
| influence protection | IP67 |
| output | CABLE2X0.35-1.5m |
| output stage | TRANSISTOR |
| output function | NC |
| voltage range | 10-60VDC |
| max output current | 120 mA |
| max output frequency | 700 Hz |
| indicator led | ✔ |
| max drop voltage | 5 V |
| max noload or leakage current | 2 mA |
| pressure rate | 3 bar |
| mounting | non flush (unshielded) |
| revers voltage protection | yes |
| short circuit protection | 0 |
| pick voltage protection | yes |
